Emergency Power Kit Pro-RLP-5050
|
|
Luminux is proud to present you the Emergency Power Kit Pro-RLP-5050 which is certified to comply with the Hong Kong Fire Service Department PPA/104(A) 4th Revision standards.
Emergency Power Kit Pro-RLP-5050 is designed to convert a wide range of Luminux LED luminaires to an emergency lighting feature. The Pro-RLP-5050 can be applied as maintained or non-maintained luminaires. |
|
|
 |
|
¡@ |
Comply with the Hong Kong Fire Service Department PPA/104(A) 4th Revision standards |
|
¡@ |
Compatible with maintain or non-maintained luminaires applications |
|
¡@ |
Suitable for max 50W LED luminaires with 110/240V external power supply |
|
¡@ |
Output short circuit protection |
|
¡@ |
Mains voltage spike protection
|
|
¡@ |
Output overload protection |
|
¡@ |
Battery low voltage cut-off protection |
|
¡@ |
Built-in Smart Battery Charger to prevent battery self-discharge through airflow |
|
|
 |
¡@ |
|
¡@ |
 |
|
Model No |
Pro-RLP-5050 |
|
System Mode |
Maintained or non-maintained luminaires |
|
Applicable LED Light Fixture |
Input: 110/240V External LED Driver, Output: Max 50W |
|
Ballast Lumen Factor |
50%, (30% is available upon request ) |
|
Emergency Duration |
2 hours, (3, 6 and 8 hours are available upon request ) |
|
Recharge Period |
12 hours |
|
Transfer Time |
<0.25 sec |
|
Battery Type |
Sealed Ni-Cd / Ni-MH High Temperature Recharge Battery |
|
Battery Voltage |
12V or 14.4V |
|
Main Power Supply |
180-250V, 50Hz, Single Phase |
|
Operating Temperature |
0ºC - +50ºC |
|
Working Humidity |
20-90% RH Non-condensing |
|

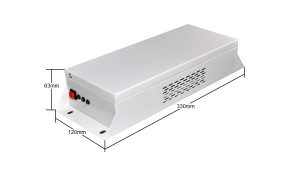

Product Dimension |
L330 x W120 X H63(mm)
|
Standards |
Hong Kong Fire Service Department PPA/104(A) 4th Revision, BS 5226 part 1:2012, EN 60598-2-22:2008, EN 60702-1:2002, EN 60702-2:2002, BS 6207-3:2001, BS 6387:1994 CAT. CWZ
| |
 |
|
¡@ |
 |
|
|
¡@ |
 |
|
