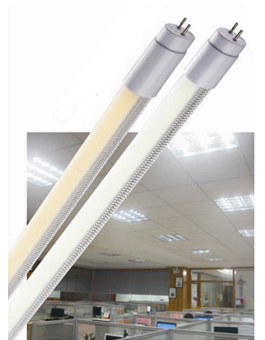

Hi-End LED Tube
Luminux is proud
to present you the High Brightness LED Tubes
which are perfect for the general offices,
supermarkets and factories. This stylish
Italian professional design with fireproof
cover has made this product selling all over
the world. For Example, AIA office in
Central, Kowloon Motor Bus (KMB), GOME
Store, Hang Seng Bank, Japan Yamamoto
Hospital and Jusco Japan etc.
Every piece is under serious test before
ship to customer. it is now possible to
reduce energy consumption and maintenance
costs without compromising on light quality
and ambience
¡@ |
 |
|
¡@ |
Designed as a direct retrofit to
most T8 lighting fixtures |
|
¡@ |
Low power consumption. Starts form
8W to replace of 20W, 18W to replace
of 40W, and 23W to replace of 58W
conventional fluorescent tubes |
|
¡@ |
Long life. 50,000 hours rated life
to 70% of initial light output |
|
¡@ |
With unique 180º view angle which
effectively solve the dark area due
to limitation of angle, create best
evenness for eye conformability. |
|
¡@ |
With 1 OZ copper layer in the
aluminum board and Aero Dynamic
aluminum alloy heat sink design
which effectively release the heat
generated by LED. |
|
¡@ |
Direct Installation ¡V no
modification required for most of
the fluorescent light fixtures,
especially the fixtures with
starters. |
|
¡@ |
Top Quality PMMA Cover - imported
from Japan, with super high light
transmission rate, up to 92% of
light transmission ratio. |
|
¡@ |
With fireproof rating (94-V0) |
|
¡@ |
Multi-ways of Connection |
|
¡@ |
Top Quality Material - Capacitors
and IC are imported form Japan, e.g.
Rubycon Capacitor |
|
¡@ |
RoHS compliant |
|
¡@ |
UV and IR free |
|
|
 |
¡@ |
|
¡@ |
¡@ |
 |
|
¡@ |
|
Item |
Wattage |
Input Voltage |
Base |
Length |
Color Temperature
(selection) |
|
T80C |
8W |
100-240VAC |
G13 |
602mm |
3000K, 4000K, 5700K |
|

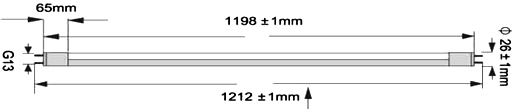

T80E |
20W |
100-240VAC |
G13 |
1212mm |
3000K, 4000K, 5700K |
|

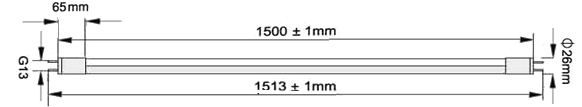

T82G |
23W |
100-240VAC |
G13 |
1513mm |
3000K, 4000K, 5700K |
|
|
|
 |
|
Applications |
Notes |
|
¡@ |
Landscape Accent |
Operating temperature range between
-20ﾟC and +40ﾟC (-4ﾟF and +104ﾟF). |
|
¡@ |
Architectural Lighting |
For used in dry indoor only. |
|
¡@ |
Display Case Accent |
Not for use with dimmers or in
luminaires controlled by a dimmer. |
|
¡@ |
Artwork Lighting |
Not for use where exposed to
weather. |
|
¡@ |
Mood Lighting |
Not intended for use with emergency
exit fixtures or emergency lights. |
|
¡@ |
Home Indoor lighting |
Don't look into the light directly. |
|
 |
|
¡@ |
|
Item |
Wattage |
Input Voltage |
Base |
CCT |
Lumen Output |
View Angle |
CRI |
Power Factor |
Temperature |
|
T80C |
8W |
100-240VAC |
G13 |
2800-6500K |
700-900 |
180º |
80 |
>0.9 |
-20ºC~40ºC |
|
T80E |
20W |
100-240VAC |
G13 |
2800-6500K |
1400-1800 |
180º |
80 |
>0.9 |
-20ºC~40ºC |
|
T82G |
23W |
100-240VAC |
G13 |
2800-6500K |
1800-2200 |
180º |
80 |
>0.9 |
-20ºC~40ºC |
|
Note: All specifications @
25¢J ambient condition |
|
|
|
|
|
¡@ |
|
¡@ |
 |
|
|
¡@ |
|
