Teleco Automation DMC 230V Dimmer and Receiver 2 Loads TVDMCxxxBB02
|
|
Luminux is proud to present you the Intense 230V Dimmer Receiver with 2 loads
which allows the user to adjust the brightness to the desired level and
to create scene settings and atmospheres by 2 individual load.
Intense 230V Dimmer receiver 2 loads is suitable for different kinds of lights,
thanks to the built-in radio module it can be wireless controlled
by remote transmitters. It is equipped with fade function at
switch-on and off of the light, with memory function of the last
level of lighting and with and push-buttons UP/DOWN/OFF for manual
regulation. It perfectly integrates with the products of the Intense
range and if controlled by a 7-channel transmitter it is possible
to pre-set 4 light scenes. |
|
|
 |
|
¡@ |
2 loads universal, suitable different kinds of lights: halogen, resistive lamps, 230V dimmable LED lamps |
|
¡@ |
Minimum each load 25W only |
|
¡@ |
Indestructible. 100% protected against short circuits and overheating |
|
¡@ |
Easy Installation - it replaces the existing switches with IN/OUT connection
|
|
¡@ |
Wireless - built-radio module to create scene settings with the transmitters |
|
¡@ |
Interchangeable frames in different colours (White / Black) and materials (Poly Glass, Stainless Steel or Glass),
available on request |
|
¡@ |
Programmable for individual load - minimum light level, fade function at switch ON and OFF, memeory last level of light |
|
¡@ |
Compatible with all series Teleco Automation Transmitters |
|
¡@ |
PUSH Button Input for individual load 2 ways Dimming |
|
|
 |
¡@ |
|
 |
¡@ |
 |
|
Model No |
TVDMCxxxBB02 |
|
Input Power |
220-230VAC, 50/60Hz |
|
Resistive Light Power 230V |
Max. 250W + 250W, Min. 25W |
|
Dimmable Transformer (LC) |
Max. 250W + 250W, Min. 25W |
|
Operating Temperature |
-20ºC + 50ºC |
|
Remote Controllable |
Yes |
|

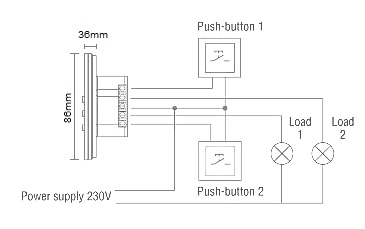

Dimensions |
L86 x W86 x H36(mm) |
 |
|
¡@ |
 |
|
|
¡@ |
 |
|
