Callie

 The Luminux Callie Recess Light consists 3X3W high power LED and features Four Dimensions Adjustable function. The unique recess design can effectively reduce the glare from the LED light source. Callie can be applied to hotels, retail shops and offices as general lighting.
¡@
Input Voltage 12VDC / 24VDC / 220VAC
LED Quantity 3 x 3W

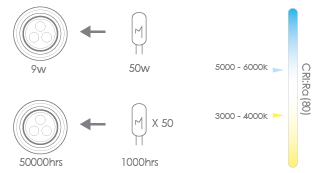

Power Consumption 9W
LED Classification High Power Cree 3W (700mA)
Color Temperature Natural White / Warm White
Life Span 50,000hrs
Operation Temperature -20¢XC ~ +50¢XC
Standard Lens Angle 15¢X, 25¢X, 40¢X, 60¢X
Weight 275g (Exclude Driver)
Dimming Options Lutron EcoSystem, DALI, 1-10V, Traic
Exclusive LED Driver Included

¡@
¡@


¡@
LED Driver: Luminux VA-12030M: Input 170 - 250VAC, Output 12VDC

¡@
