Leo

The Luminux Leo consists of 3X3W high power LED and features Four Dimensions Adjustable Function. Leo is the best to be applied to the window showcases, product displays and general lighting.
¡@
Input Voltage 12VDC / 24VDC / 220VAC
LED Quantity 3 x 3W
Power Consumption 9W
LED Classification High Power Cree 3W (700mA)
Color Temperature Natural White / Warm White
Life Span 50,000hrs
Operation Temperature -20¢XC ~ +50¢XC

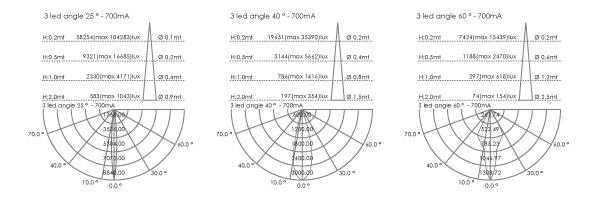

Standard Lens Angle 15¢X, 25¢X, 40¢X, 60¢X
Weight 265g (Exclude Driver)
Dimming Options Lutron EcoSystem, DALI, 1-10V, Traic
Exclusive LED Driver Included

¡@
¡@


¡@

LED Driver: Luminux VA-24040D006: Input 170 - 250VAC, Output 24VDC
LED Driver: Luminux VA-12030M: Input 170 - 250VAC, Output 12VDC

¡@
