Fion

The Luminux Fion Recess Light consists of 9X3W high power LED and features Four Dimensions Adjustable function. The unique design can effectively reduce the glare from the LED light source. Te dynamic Airflow heatsink design ensures the LED power and reliability. Fion ca be applies to hotels, retail shops and general offices as general lighting.
¡@
Input Voltage 12VDC / 24VDC / 220VAC
LED Quantity 9 x 3W

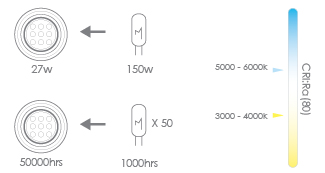

Power Consumption 27W
LED Classification High Power Cree 3W (700mA)
Color Temperature Natural White / Warm White
Life Span 50,000hrs
Operation Temperature -20¢XC ~ +50¢XC
Standard Lens Angle 15¢X, 25¢X, 40¢X, 60¢X

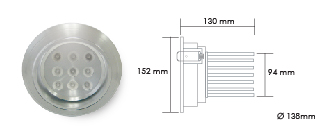

Weight 715g (Exclude Driver)
Dimming Options Lutron EcoSystem, DALI, 1-10V, Traic
Exclusive LED Driver Included

¡@
¡@


¡@
LED Driver: Luminux VA-24040D006: Input 170 - 250VAC, Output 24VDC
LED Driver: Luminux VA-12030M: Input 170 - 250VAC, Output 12VDC

¡@
