Capricorn

The Luminux Capricorn series consist of 9x3W and 9x3Wx2 high power LED which offer superior light output whilst consuming minimal energy.

Capricorn features Four Dimensions Adjustable function and incorporates with stylish design which are the best for general downlighting in any high-end domestic and commercial projects. The dynamic airflow heat-sink design ensures the LED power and reliability.
¡@

Input Voltage 12VDC / 24VDC / 220VAC
LED Quantity 9 x 3W / 9 x 3W x 2
Power Consumption 27W / 54W
LED Classification High Power Cree 3W (700mA)
Color Temperature Natural White / Warm White

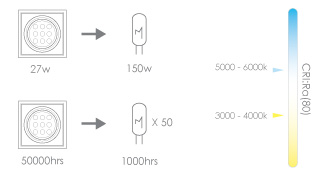

Life Span 50,000hrs
Operation Temperature -20¢XC ~ +50¢XC

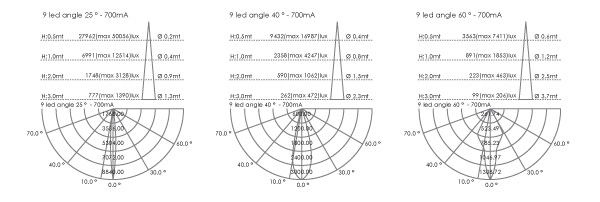

Standard Lens Angle 15¢X, 25¢X, 40¢X, 60¢X

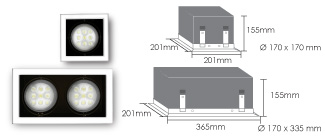

Weight Approx 1220g / 2160g (Exclude Driver)
Dimming Options Lutron EcoSystem, DALI, 1-10V, Traic
Exclusive LED Driver Included

¡@
¡@


¡@

LED Driver: Luminux VA-24040D006: Input 170 - 250VAC, Output 24VDC
LED Driver: Luminux VA-12030M: Input 170 - 250VAC, Output 12VDC

¡@
