The Luminux Libra
series consist of 6x3W and 6x3Wx2 high power
LED and featuring Four Dimensions Adjustable
function. Libra are the best for product
displays commercial and residential
downlighting. The dynamic airflow heatsink
design ensures the LED power and
reliability. ¡@
Input Voltage
24VDC
/ 220VAC
LED Quantity
6 x 3W / 6 x 3W x 2
Power Consumption
18W / 36W
LED Classification
High Power Cree 3W (700mA)
Color Temperature
Natural White / Warm White
Life Span
50,000hrs
Operation Temperature
-20¢XC ~ +50¢XC

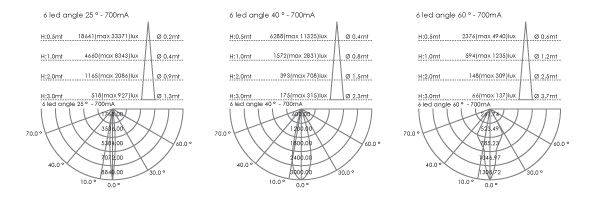

Standard Lens Angle
15¢X, 25¢X, 40¢X, 60¢X
Weight
Approx 1210g / 2160g (Exclude
Driver)
Dimming Options
Lutron EcoSystem, DALI, 1-10V, Traic
Exclusive LED Driver
Included
¡@
¡@
¡@
LED
Driver: Luminux VA-24040D006: Input 170 - 250VAC,
Output 24VDC
